The Electromagnetic Separator Installed above the conveyor to remove scrap iron buried in thick material layer. Equipped with a tough,vulcanized rubber belt to remove scrap irons continuously. High-quality Aluminum or Copper wire used. The Electromagnetic Separator uses Optional magnetic force at the suspension height rated:500Gs, 700Gs, 900Gs, 1200Gs, 1500Gs or above, which will be determined by the requirements of the client. Optional stainless steel clad belt.

The Electromagnetic Separator has Heavy-duty construction.Compact design. Electric motor with chain drive transmission. Departure of the belt can be recrified automatically. Low noise.Low maintenance. The Electromagnetic Separator can be suspended either cross belt (perpendicular to the product flow) or inline (parallel above the product flow).

Air- cooled, self cleaning Electromagnetic Separator are suspended overhead magnets designed foremoving ferrous steel and other magnetic materials from your burden during the crushing, screening and sorting processes.

  • Electromagnetic Separator
  • Electromagnetic Separators
  • Electromagnetic Separator Manufacturer
  • Electromagnetic Suspended Separator
  • laboratory Electromagnetic Separator
Electromagnetic Separators Electromagnetic Separators Electromagnetic Separator Manufacturers Electromagnetic Suspended Separators Laboratory Electromagnetic Separators

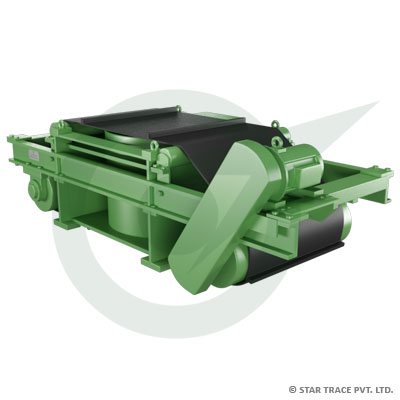

An armour clad conveyor belt travels around the magnet and carries the ferrous material that is drawn upward, away and into collecting hoppers or onto the ground. The Electromagnetic Separator units are typically installed either in-line (As in the photo), or cross belt (90 deg. Across the conveyor belt.) They are ideal for removing miscellaneous metallic debris from crushed and recycled material and are designed to provide long-term, trouble free operation. All units are equipped with the required rectifier to power the magnet.

ELECTRO OVERBAND MAGNETIC SEPARATORS FEATURES:
  • Magnets equipped with heavy steel side plates.
  • Aluminium Wound coils with class H insulation.
  • Two year warranty against magnetic coil burnout .
  • Solid steel core .
  • NEMA 4X terminal box.
  • Four pulley design.
  • Adjustable screw take ups on tail pulley.
  • 5 hp motor for self-cleaning belt.
  • Stainless Steel Clad Belt INCLUDED.
ELECTRO OVERBAND MAGNETIC SEPARATORS APPLICATIONS:
  • Mixed demolition debris.
  • Crushed or broken aggregate.
  • Mixed solids at MRF facilities.
  • Refuse at mixed waste facilities.
  • Shredded tire processing.
  • Mill and Scrap Yard Processing.

Magnet size in the Electromagnetic Separator is based upon application evaluation. (i.e. belt width, belt speed burden depth, size of recoverable ferrous Burd)

MODEL DIMENSIONS WEIGHT
STR-36 100" l x 44" w x25" 1452
STR-42 106" l x 50" w x25" 2314
STR-48 112" l x 56" w x25" 3267
STR-54 118" l x 62" w x25" 4220

Installed above the conveyor the Electromagnetic Separator removes scrap iron buried in thick material layer.The Electromagnetic Separator is Equipped with a tough, vulcanized rubber belt to remove scrap irons continuously. High-quality Aluminum or Copper wire used. Optional magnetic force at the suspension height rated:500Gs,700Gs,900Gs, 1200Gs, 1500Gs or above, which will be determined by the requirements of the client. Equipped with fan-cooling system. Heavy-duty construction. Compact design. Electric motor with chain drive transmission. Departure of the belt can be rectified automatically. Low noise, Low maintenance, much power saved. Can be suspended either cross belt ( perpendicular to the product flow) or inline ( paralled above the product flow).

STRB Plate Electromagnetic Separators:

The Electromagnetic Separator is Installed above the conveyor to remove scrap iron buried in thick material layer. The Electromagnetic Separator is Equipped with a tough,vulcanized rubber belt to remove scrap irons continuously. High-quality Aluminum or Copper wire used. Optional magnetic force at the suspension height rated:500Gs,700Gs,900Gs,1200Gs,1500Gs or above, which will be determined by the requirements of the client. Optional stainless steel clad belt. Heavy-duty construction.Compact design. Electric motor with chain drive transmission. Departure of the belt can be recrified automatically. Low noise.Low maintenance. Can be suspended either cross belt (perpendicular to the product flow) or inline (parallel above the product flow).

OBMS Specification
MODEL Belt Width mm Colling Method Suspension Height Rated (SHR) Excitaion Power Driver Power kw Coller Power kw Outline Dimension mm Weight kg
A B C D E F
STRA-6 650 Fan Cooling 200 <3 1.5 0.37 2240 1273 733 881 873 436 1030
STRA-8 800 250 <4.5 2.2 0.55 2465 1539 735 1240 1073 537 1830
STRA-10 1000 300 <6 3.0 0.55 2650 1727 821 1365 1273 650 2760
STRA-12 1200 350 <9.5 4.0 1.1 3090 2052 908 1660 1523 761 3355
STRA-14 1400 400 <12 4.0 1.5 3266 2243 974 1930 1723 841 4535
STRA-16 1600 450 <14.5 5.5 2.2 3564 2505 1032 2100 1930 945 6860
STRA-18 1800 500 <18 7.5 4.4 3910 3190 1550 2010 2130 1393 11800
STRA-20 2000 550 <31.5 7.5 1.1 4270 3330 1560 2180 233 1337 16500
