STAR TRACE Vibratory motors are Robust, Reliable, High Loadable Quiet Running and require no maintenance.

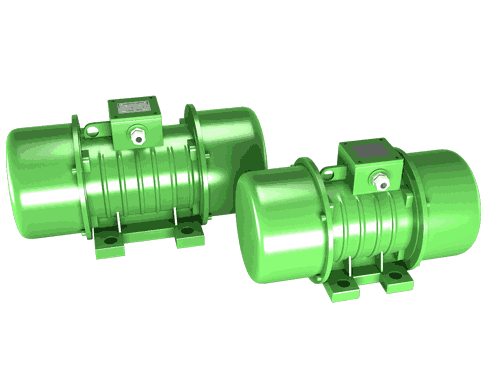

STAR TRACE Vibratory Motors are totally enclosed 3Phase, Squirrel cage induction motors with adjustable, eccentric weights mounted at both the ends of the shaft, to set up vibrations during rotation. The design of shaft and the selection of bearings has been carefully done to withstand heavy radial loads.

These motors are used in various material handling equipment’s such as vibrating screens, conveyors, and feeder. They are also used on hoppers, silos to prevent congestion of material flow. Foundry shake – outs and compacting machines use these motors for fast and efficient operation.

Generously dimensioned cylindrical roller bearing, self lubricating maintenance – free, long life expectancy.

Embedded in high –quality impregnating resin vibration –proof winding, insensitivity to damp and dust.

Dust –tight and Water –tight through a sealing covering with special circular rubber washer.

Reliable starting by means of a high –powered starting torque.

Quality –tested components, each motor tested under load.

Permanent and well legible setting marketing of the unbalanced weights.

One of Two lifting lugs.

Vibration – proof joining through the considerable Tensility of the mounting screws.

Absolutely secure centrifugal mounting.

Universal mounting facilities through an optimum choice of inter spacing in the base mounting.

Enhanced Reliability & low maintenance .

Increased Efficiency.

Rugged construction for tough environment.
