"Star-Lift"
- Permanent Magnetic Lifter
- Compact and lightweight
- Suitable for Flat and round material
- Very High Lift to its weight ratio
- Quick & Easy Operation with ON/OFF System
- Neodymium Magnetic Powered System
- Improves Plant Safety No direct contact with men
- Large and Heavy work piece can be moved/handled safely easily by only one operator.
Permanent Star-Lift Magnet
- Handling Heavy weight products has made easy by Permanent Star-Lift Magnet
- These magnetic lifters are widely being used in the industry. Apart from machine tool they are used in variety of industries.
- The Idea behind is to cut the time by conventional, unsafe handling to safe and secure and faster operation of lifting and handling of Heavy products.
- Construction of Permanent Star-Lift Magnet is itself a high-end technology with careful selection of material and testing. Our experience and fed back from our customers have made our product more reliable than any others.

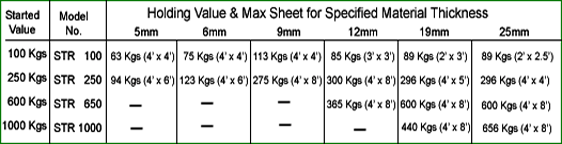

Technical Specification
Notes: Holding Values for the PowerLift Magnets are stated at 33% of
the actual value. When lifting sheets over 4'x8', use 2 or more lifts
on a spreader bar to prevent sheet flexing, sagging or peel-off. Material
less than 3/8" thick is susceptible to magnetic bleed through, resulting
in two sheets being lifted at once. Round Item Holding Values are based
on ideal conditions. Pipe length, Wall thickness diameter and surface
condition can all effect the magnets performance. Please consult the factory
before specifying these magnets for use on round material.
These sheet sizes are selected due to the sag characteristics of the
specified sheet. All other maximum sheet sizes are recommended due to
the weight of the specified sheet.
